Selecting fields

Selecting the specific fields that can provide answers to your questions reduces response time and unnecessary records.

Fields represent specific data elements in databases.

Infosets and SAP Queries

After adding the Infoset/SAP query into query builder area all the underlying fields in the query are seen in one single table. For each of the fields even the table name is seen.

For Infoset query you can chose any field as output field and they get listed in the criteria pane. You can now set criteria on it. For more details on using the criteria pane, see "Using criteria to define fields".

Note: You cannot deselect the default selection fields for criteria in an Infoset. These selection fields have been set during the creation of Infosets on your SAP server.

For SAP queries, you cannot select or deselect any output or criteria fields.

However, you can modify the criteria. For example, you can change the selection type to Fixed from Runtime, change the Where Clause details, or make the criteria mandatory.

Note: AND expression and IN operator are not available for Infosets and SAP queries.

Click Preview run to test the designed query.
Click Number of entries to know how many records are extracted.

Logical Databases

After the logical database is added to query builder area, select the output fields. The selected output fields appear in the criteria pane.

Selection fields are the fields on which the criteria is set. You cannot deselect any of the existing selection fields or add new selection fields. You can use only what is already set inside the logical database you want to use.

However, you can modify the criteria. For example, you can change the selection type to Fixed from Run time, change the Where Clause details, and make the criteria mandatory.

Note:

AND expression is not available for logical databases on Where clause builder.

In the WHERE clause builder, only those logical operators are available that are applicable to the selected field. For example, if there is a field on the selection screen of an logical database which requires a range of values (such as, FROM and TO) as input, the BETWEEN operator will be available for this field in QUERY.

Click Preview run to test the designed query.
Click Number of entries to know how many records are extracted.

Note: The following items are not supported in the current version of QUERY.

Radio buttons, list boxes, buttons on selection screen
Logical databases with Dynamic node
Any logical database which has any additional screen, such as a pop up, which comes after the selection screen
LDBs Node Types are not supported:
C - Complex data object
A – Typed nodes (ANY) at runtime (such as PNP, PNPCE)

Tables

A table can contain from a few fields to hundreds. By default, primary key fields and index fields are listed at the top according to name and description. Fields that are primary keys are represented by a key iconand index fields are represented by an inverted key icon .

QUERY also offers other means for you to easily find fields in a table.

To find fields in a specific table

Right-click the table, and then select one of the following sort or search options on the shortcut menu.
- Sort by name. Sort by ascending or descending order.
- Sort by description. Sort by ascending or descending order.
- Default sorting. By field name, but with primary keys at the top.
- Sort by selection. This option displays your selections at the top of the tables and is useful when you want to create joins between two tables that contain many fields.
- Zoom In on Table. The Fields Selection window shows field names and descriptions. You can search for fields by using a whole name or use the Begin with setting to search by using the first letters of a name.
- Begins with. Select when you are sorting on search fields to search first on field description and then on field name.

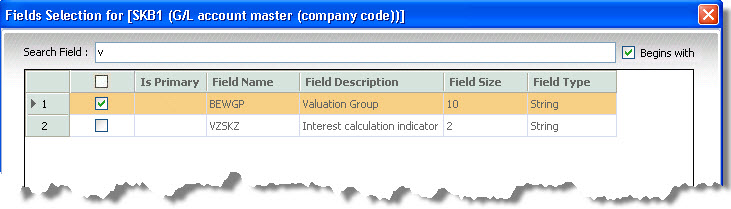

A table after you zoom in. The Begins with setting was selected and the letter v was entered as the search field. It returned two fields whose names and description begin with a "v".

To select fields for output

Select the check box next to the field you want to add.

A selected fields in the G/L Account Master table.

To select all fields

Right-click the table, and then click Select all fields on the shortcut menu.

To deselect all selected fields

Right-click the table, and then click Deselect all selected fields on the shortcut menu.

Using criteria to define fields

In the Criteria form, you specify how the fields you have chosen are processed in the query. You also specify criteria that further define the query on the selected fields.

Fields in the criteria pane

Column name	Details
Output	Select this if you want the field to be displayed in the result set. If you clear the check box, you can still use it to build a Where clause and use it to filter data.
Selection	Select this if you want to set criteria on a field.
Field description	Shows the SAP field description. You can edit it and enter your own custom description.
Technical name	The expression table name. Field name is displayed here.
Selection type	Using this option you can choose either to predefine the criteria or set it during run time.
Where clause	Click the ellipses to launch the Where clause builder and set the criteria.
Required	Select this option to make it mandatory to enter criteria during run time.
Lookup type	Select the source for the lookup values. SAP Optional. Either look for values in SAP or manually enter any value. SAP only. Select the values from the list SAP provides. List. Select values from the customized list created by the query designer.
Padding	Controls automatic padding for numeric values of string fields. Padding is applied automatically, for Num, Char, Numchar, and string values, but you can select to remove it. Padding improves the accuracy of your data extracts and is important for extracting the correct values from SAP. Note: If you compare non-numeric data without padding, QUERY may return unexpected results.
SAP type	The data type of the field in SAP table.

To add criteria for a field

Click Selection for a field on which you want to set the criteria.
The default values for the other columns will appear as explained below

Column name

Default value

Selection type

Runtime

Required

None

Lookup type

SAP optional
You can change these default values as per your requirements.
If you chose the Selection type as fixed, the Where clause builder launches as seen in the figure below
If you want to make criteria on any field as mandatory, click Required.
Set the lookup type.
Click Show Preview to see sample run of the designed query.

To clear criteria

Click the criteria that you want to remove, right-click, and then click Clear Criteria.

To sort criteria

You can sort criteria on the following columns in the criteria pane: Output, Selection, Field Description, and Technical Names.

To reorder rows in the criteria pane

Drag a row to position you want it to have.
The new order appears in the runtime form and in new queries created in the mapper. You can also open legacy queries and reorder the rows.

The power of WHERE clauses

Use WHERE clauses to limit extractions and thus reduce download time. Where clauses are especially useful in multi-table queries. If no WHERE clause is specified, all records will be returned.

With the WHERE clause builder, only those logical operators are available that apply to the selected field. In addition, you can use AND and OR operators between clauses. You can build as many WHERE clauses as you need.

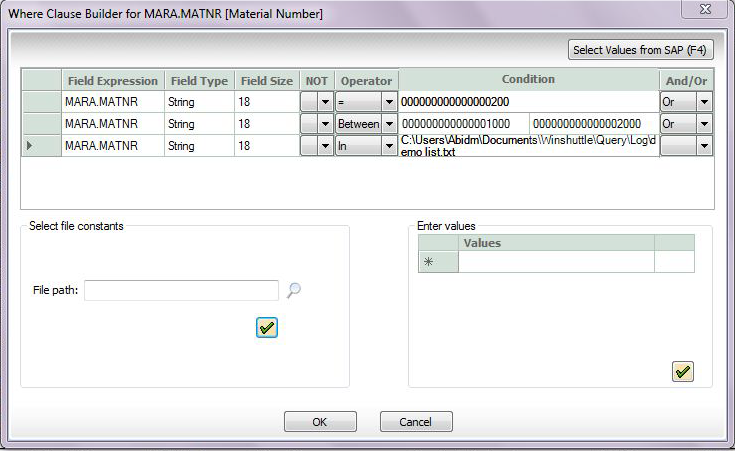

The WHERE Clause builder

Fields in the WHERE clause builder

Field name	Automatically generated, this indicates the table name and the selected field name.
Field type	QUERY displays the type of field, whether a string, double-byte, date or time data type.
Field size	QUERY displays the size of the selected field in bytes.
Padding	Controls automatic padding for numeric values of the string fields. Note: If you compare non-numeric data without padding, QUERY may return unexpected results.
NOT operator	Specify whether you want the inverse (NOT) of the specified operator.
Operator	The available operators change according the field that is selected. Operators include =, <, >, <=, >=, <>, Like, Between, In, Is Null, Is not Null
Condition	Type a condition to define the search, or press F4 to see a list of SAP values that are allowed for that field.
OR and And expression	Use AND or OR to apply more than one condition.

To specify conditions in a WHERE clause

Specify an operator or the NOT operator.
Do one of the following:
- Specify a condition.
- Click inside the Condition box, and then click Select SAP values (F4) to choose a value from SAP.
- Add the list of condition values to a text or Excel file and use Select file constants to indicate the file path.
- Use the Enter values option to enter multiple condition values.
To apply another condition, click OR or AND, and then repeat steps 1 and 2.

The Like operator and wildcards

The like operator has unique behavior in QUERY. You can apply wildcards to fine-tune your query.

Single underscore or question mark

a_ or a? returns records for values like a1, a2, and ab, but not a12 or abcd. You can use any number of underscores the number of characters you want to match.

Percentage

a% or a* returns all values that start with ‘a’, followed by any number of characters. For example, it matches a1, a2, ab, a12, and abcd.

Select Date Constants/Values

With the Select Constant/Variables option, perform date math, such as Today-120. You can also select the date from the calendar displayed or chose an SAP initialized date. Date values for criteria must always be specified in the correct date format as selected in Tools > Options > SAP Defaults.

The Enter Values of Run Time Variables dialog box, which appears when you select constants and variables.

Select SAP Values (F4)

To add SAP values to the criteria builder

To add values appropriate to a field in your criteria builder, click Select SAP Values or press F4.
Click a value, and then click the Check Mark. The value appears in the Condition box.

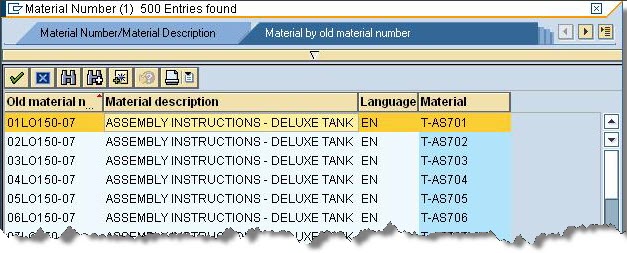

The SAP values that appear when the SAP GUI is available.

If the SAP GUI is not installed on your computer, or if the field selected in the table has no associated description in SAP, only the values (without their description) are displayed. By default, the first 100 records are scanned and relevant values are displayed. To see more records, specify the number you want to scan in the No. of Records box. Maximum number of values that can be scanned are 5000.

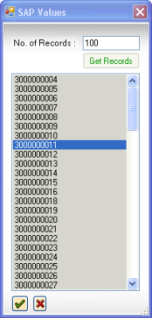

The SAP values dialog box, which appears when you click the SAP Values button.

Adding run time values

When you include run time variables as criteria values, the values must be added at run time. If the criteria was set as "Required", it is mandatory to add values at run time.

If you use the IN operator in the criteria you can select either a text or an Excel file to contain a list of values that are read in when the query is previewed or run.

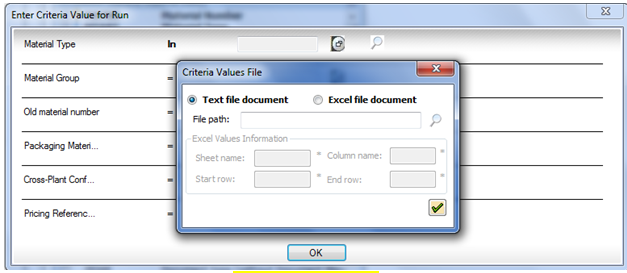

The dialog boxes for the Select File option.

Number of entries

This feature is available for single table and multiple table queries. Click Number of Entries to see the number of records that the selected criteria will return.

Show Preview

Click the Show Preview button to see the kind of records that the query you have built will return. By default, 100 records are returned.

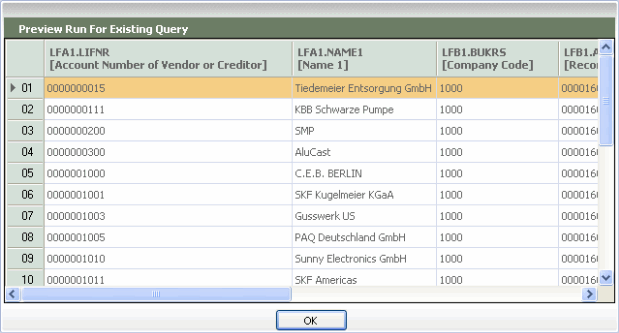

The Preview Run dialog box which displays an example of the kinds of records that will be returned by your query.

Show query

Click the Show query button to see the SQL expression that is created by the query.
