Schedule a Transaction run

When you use the Scheduler to schedule a run in advance, Studio automatically connects to SAP, runs the transaction on the schedule you set up, and then closes the connection with SAP. Studio can send an email notification confirming that the scheduled job was performed.

To run a scheduled script on a virtual machine (VM) with Windows 7 or later or Windows Server 2008 or later, you must remain logged on to the VM.

For information about running Winshuttle with Citrix, see Citrix installation with Winshuttle products.

  1. On the Run tab, click Schedule.

    If you are not logged on, the SAP Logon box will open so that you can log on to the SAP system.

  2. In the Winshuttle Scheduler box, in the Title box, type the title you want Studio to show in the list of scheduled tasks.
  3. In the Send email notifications to box, type the email address where you want to receive scheduling notifications.

    Use commas to separate multiple email addresses.

    Note: If you are using an Exchange server to send email notifications and using an Excel or Access data file, you can include the results file with the email message by checking the Attach data file box. To set this up, provide the Exchange server details in the Studio options.

  4. In the Run reason box, you can change the reason for the run.
  5. Click Next.

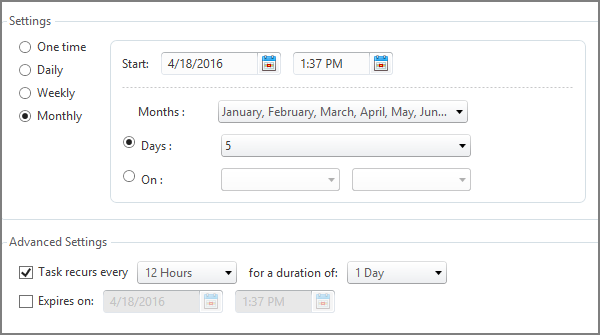

  6. Click One time, Daily, Weekly, or Monthly.
  7. Choose the recurrence options you want. These options change depending on what you clicked in step 7.
  8. Under Advanced Settings, you can choose to run the script multiple times. For example, if you want to run the script monthly on the fifth day, and you want to run the script at the beginning and the end of the day, check the Task recurs every box, click 12 Hours, and click 1 Day.
  9. To stop running the scheduled script, check the Expires on box and then enter a date and time.


  10. To stop running the scheduled script, check the Expires on box and then enter a date and time.
  11. Click Finish.

Change the schedule or stop scheduling a run

  1. Click the File tab.
  2. Click Scheduled Tasks.
  3. Click Delete, or click Edit to make changes in the Winshuttle Scheduler box.
