Advanced maintenance of the table

In normal scenarios, you do not need to maintain this table, unless you are advised to by Winshuttle Support or you are an advanced user and are sure of the changes.

Note: Click Cancel to cancel any action or return to the previous screen.
cancel button

Enter the transaction code /n/WINSHTLQ/ADMPANEL.

type the WFM admin t code

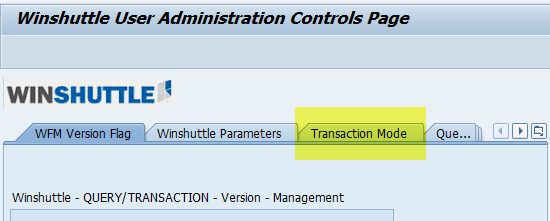

Click the Transaction Mode tab.

transaction mode tab

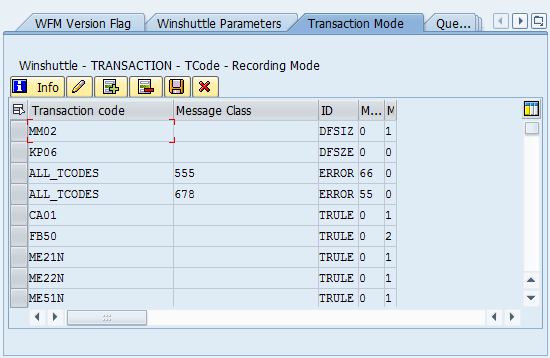

The screen shows the Table /WINSHTLQ/TRCTAB values.

ttransaction tab values

The following steps show you how to use the transaction code /WINSHTLQ/ADMPANEL for transaction rule maintenance.

Change values

To modify the table values, click Change.

change button

Make the changes that you want in the Mode column, and then click Save.

save button

The Data Saved message at the bottom of the window shows that the save was successful.

data saved message

Insert Row (Addition)

To add a new row in the Table /WINSHTL/TRCTAB, select the record or position, and then click Insert Row.

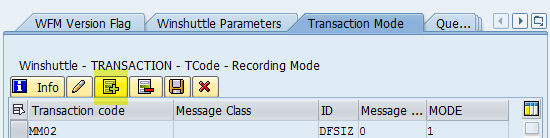

insert row button

The new row is added above the selection.

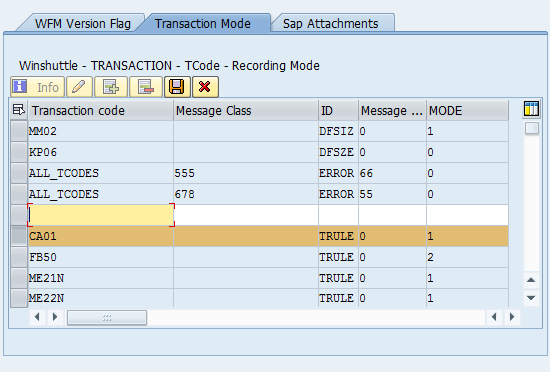

new row on transaction mode tab

Enter the values for the fields, and then click Save.

save button

The Data Saved message at the bottom of the window shows that the save was successful.

data saved message

Delete Row (Deleting an existing record)

Select a record or row to be deleted from the Table /WINSHTL/TRCTAB.

Click Delete Row.

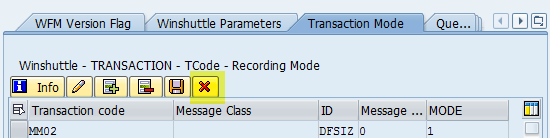

delete row button

Click Save to complete the deletion of the selected record.

save button

The Data Saved message at the bottom of the window shows that the save was successful.

data saved message

Advanced maintenance for specific rules

With this feature installed on SAP, the ABAP add-on can process specific transaction codes, with or without batch relevant screens. It is also used to enable the handling of specific error messages.

This table should be edited only when you are advised to do so by Winshuttle Support, or if you are an advanced user with a deep understanding of SAP.

Table name: /WINSHTLQ/TRCTAB

Table field detail

Field name

Field description

Field explanation

MANDT

Client

Client (key field in client-specific tables)

YREFID

ID('TRULE' or 'ERROR')

Rule type (related to transaction, or error message)

YTCODE

Transaction Code

Transaction Code

YMSGID

Message Class

Message Class: Message Class for a message where it was maintained.

YMSGNO

Message Number

This is a number in the Message Class of the specific message. A message can be identified with Message Class and Message Number.

ZDEFMODE

Rule value(1 BATCH, 2 NONBATCH)

Processing with or without batch relevant screens.
