Logging

To configure logging on your server:

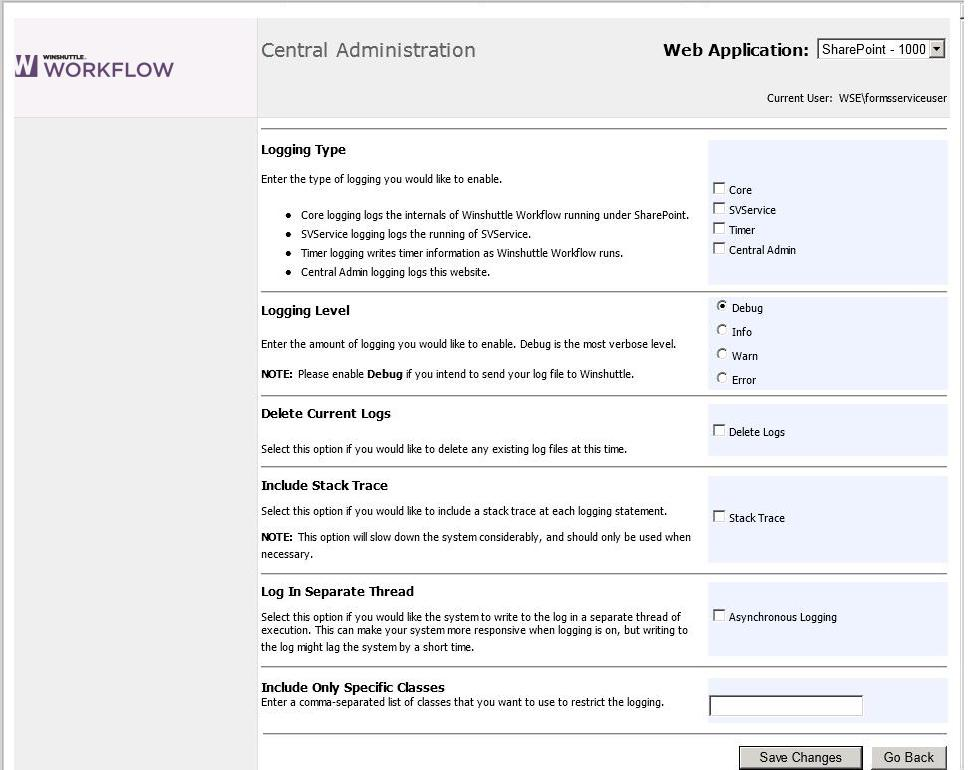

1. From the Winshuttle Workflow Central Administration Web site, click Logging in the Diagnostics section to open the Logging Type page:



2. Specify the type of logging you want to use by selecting one or more of the following checkboxes:
   • Core — logs the internal workings of the product that runs in the context of SharePoint.
   • SVService — logs errors related to SVService including email, auto approvals, and email approvals.
   • Timer — logs timer marks within the core product, which can be useful if there are performance problems.
   • Events for each logging type are saved in a separate file.
3. Specify the level of logging by selecting one of the following options:
   • Debug — The most detailed logging level. This includes variable data, so string composition is done extensively, which can trigger more frequent garbage collections, etc. Errors, Warnings, and Informational messages are also included in this level. This level of logging has the greatest impact on performance.
   • Info — General tracing messages throughout the code. No string composition is done at this level, so no variable data is written at this level. Errors and Warnings are also included in this level.
   • Warn — This level is used whenever something is detected that is wrong, but not necessarily fatal. Errors are also included in this level.
   • Error — Typically logged whenever a serious exception is thrown. This level of logging affects performance the least.

   The impact of logging on performance corresponds to the amount of data written to the log file and how the strings are composed. In most circumstances, using Error or Warn level logging will have no noticeable impact on performance because under normal circumstances very little would be written to the log at these levels. The Info and Debug levels of logging will have a greater impact on performance.

4. To delete existing log files before starting the new log, select the Delete Logs check box.
5. To include a stack trace at each logging statement, select the Stack Trace check box.
6. To increase system performance by writing the log in a separate thread of execution, select the Asynchronous Logging check box.
7. Click Save Changes.
