MM02 step by step: Changing a material master

This document describes how you can use Winshuttle Transaction to edit a Material Master in the SAP Business Suite from data in Microsoft Excel using the SAP transaction MM02.



  1. Start Winshuttle Transaction from the desktop shortcut or from the Windows Start menu.
  2. Click New.

    file tab new button

  3. Enter transaction code MM02 in the Transaction Code box, and then click Go.

    click go to start recording

    An SAP Logon screen appears.

  4. Click the SAP system that you want to use, and then click OK.
  5. Enter the appropriate User Data in the SAP Logon window, and then click the OK button.

    sap logon box

    If you do not see the SAP system that you want, click the System button and choose a different system.

  6. For the recording mode, click Batch Input Mode.

    recording properties box

    Note: Non-Batch Input Mode Without Controls will work for most transactions. Non-Batch modes are necessary for downloading information from SAP transactions, or for Finance or HR transactions in which there are Dynamic Actions executing or user parameter values being used; otherwise, if you do not have access to Non-Batch modes, you can try recording in Batch Mode. The difference between Without SAP Controls and With SAP Controls is just a matter of what tools are on the transaction screens. For more information, see the Recording modes topic (Connect mode or Central mode).

  7. Enter any additional properties in the appropriate fields.
  8. To prevent people from editing the script, check the Lock TRANSACTION script box. This will password-­protect the script, preventing anyone from changing it.
  9. Click the Next button.

    The MM02 transaction starts.

    Note: The following screens may vary according to the way your SAP system has been configured.

    To make this process repeatable by Transaction, there will be a few changes to the process compared with how you would manually update a material. These differences will be identified throughout the rest of this document.

  10. Enter the Material Number and click Select view(s).

    change material initial screen

  11. If your Select view(s) page has been set up with a default set of selections, click the Deselect all button at the bottom of the page first. This will clear out any entries prior to selecting the views required for your recording.

    deselect button at the bottom of the screen

  12. Select only Basic Data 1.

    Note: This step in the recording differs from manual data entry and makes the selection repeatable.

    select basic data 1 in select views screen

  13. Click the green checkmark button to continue.
  14. Enter data into all the Basic Data 1 fields that you want to include when you upload data to SAP, and then click the Tab List drop-down button.

    button at the far right of the tabs

  15. Select the next tab that you want to update.

    choose the next screen

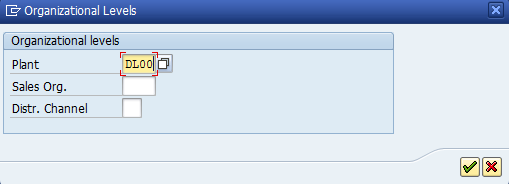

  16. Enter the plant number and click the green checkmark button.

    organizational levels box

  17. Update the fields on any additional tabs that you want to include.

    enter data and then click save

  18. When you have made all the updates that you want, click the Save button. This will also end the recording and take you back to Transaction.


It is now time to create the mapping for this transaction. Mapping a script is just a matter of connecting SAP fields to fields in your data file. Transaction provides a Mapper to facilitate this process.

Auto Mapping will map the entire script to an Excel spreadsheet and in order. Because of the complexity of this transaction, we will choose the Create Mapping option instead.

  1. In the Map pane, click Create Mapping.

    link to open mapper

  2. The screenshot below shows the Expert Tab of the Mapper.

    Each row of the Mapper displays the following:

    • Mapper Row number: This is just a reference number.
    • Enable flag: only enabled Mapper rows will be executed by Transaction.
    • Screen / Screen Number: Technical screen information from the recorded transaction.
    • Field Description: The label associated with the SAP technical field name.
    • Field Name: The SAP technical field name.
    • Mapping Type: Fixed Value, Excel to SAP, SAP to Excel (or, if mapping to Access: Access to SAP, SAP to Access).
    • Value: Values assigned to the SAP field; either fixed values or values to or from the assigned data source.
    • Notes: Free­format notes to provide useful information to runners of the Transaction script.

    mapper expert tab

  3. In the Data Source Preview section, you will see a preview screen of the selected data source.

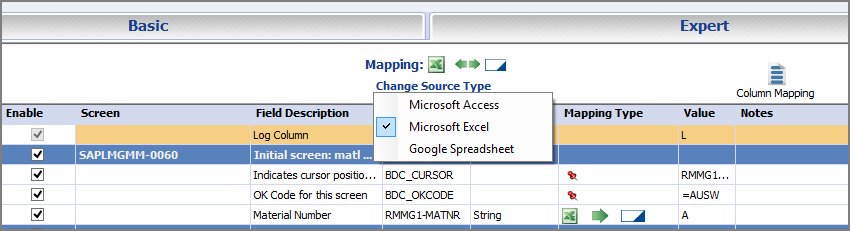

    To change the Data Source, click the Change Source Type link at the top of the Expert Tab.

    This displays a drop-down box to switch to Microsoft Access.

    click link to change type of data file

    The Preview section will also change to reflect the choice.

    In this case, we will use Excel.

  4. It is easiest to map from the Basic tab (as shown below). Click the Basic tab.

    basic tab in mapper

  5. To map the script to the data source, you will drag in the direction that the data will move. For this script, you are uploading data from Excel to SAP, so you will drag from Excel to SAP.

    Click in column A, drag it up, and drop it onto row 2.

    Continue across the Excel preview by dragging column B up and dropping it onto row 3, column C onto row 4, and so on, until all the fields that you want have been mapped.

    mapper with excel columns mapped to fields

  6. The next step is to save the script file (.TxR) and the Excel preview file (.xlsx). Click the Back arrow button at the top on the File menu.

    back button on file tab

    The best practice is to name the Excel spreadsheet the same name as the script unless an Excel spreadsheet will be used for multiple scripts.

    Note: If you want to use an existing Excel file that already has the data set up, you can skip saving the preview file and save the script file by clicking the Save button on the File menu.

  7. Transaction prompts you to save the Excel preview file.

    prompt to save preview file

  8. Click Yes, and then enter the Excel file name.
  9. Transaction prompts you to save the script.

    prompt to save script file

  10. Click Yes, and then enter the script’s name.

Add the data

Transaction loads the Run pane.

If necessary, you can navigate back to the Mapper by clicking the Update Mapping link on the Map pane.

link to open mapper and update mapping

  1. Click the Excel icon to the right of the Select Data File box. This will open the mapped Excel file that is listed in the Selected Data File box.

    open excel file to add data

    Note: Transaction will automatically assign the Log column to the next available column after the last mapped column (in this case, column L).

  2. Type the data in the columns, and then save the Excel file.

    After you enter the data into the Excel spreadsheet, you can run the script.


Back at the Transaction Run pane, you can specify a start and end row, specify the Excel sheet that contains the data, and change the Log column.

  1. To execute the upload, click the Test button, if you are a Central user, or click the Run button if you are not a Central user.
  2. In the SAP Logon window, if necessary, click the System button to select the appropriate SAP system.
  3. Enter the appropriate user data, and then click OK.
  4. In the bottom left corner, Transaction displays a message when the run has finished.

    success message

  5. Open the Excel sheet and check the log column. The run was successful and the messages returned from SAP were entered into the log column.
