Xor/Join node properties (Designer)

The Xor/Join node is used to evaluate Approval node dispositions and move on to the next step in a workflow based on the property setting of the Approval nodes.

Property

Description

Assignment CompletionLinkText

A hypertext link directing the assignee to their task. This usually does not apply to the Xor/Join node.

Description

A description of the task/assignment.

ItemLinkText

A hypertext link directing the assignee to the form or document pertaining to the task. This usually does not apply to the Xor/Join node.

MainPageLinkText

A hypertext link directing the assignee to the Winshuttle Workflow site where the task originated. This usually does not apply to the Xor/Join node.

Name

The name of task/assignment.

SetValues

Allows you to set a value in a form field or SharePoint list item, after the task has been completed.

Type

Read-only type of the node.

Example

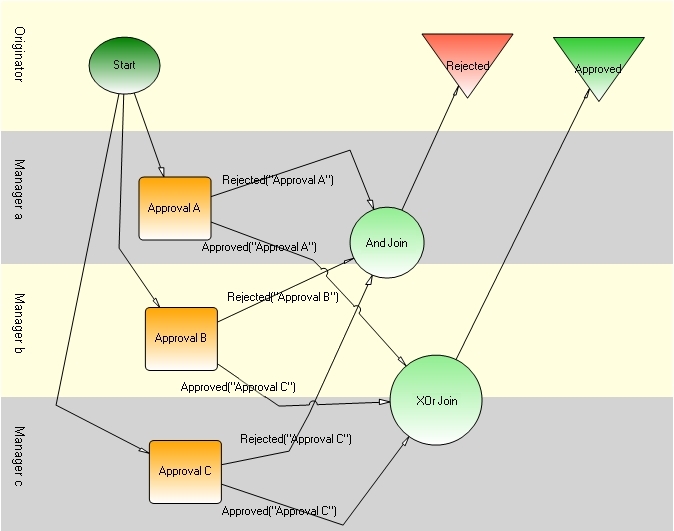

In the following example, the Xor/Join node requires the approval of a single manager before going on to approve and complete the process. (To compare, the And/Join node requires all managers to reject and end the process.)
