Applies to:

  • Winshuttle Foundation

Working with arguments

Use Arguments to pass information between form and workflow elements.

  • Field Value: Click to select a field value from the fields in your form.
  • Operator: Click to select a predefined operator, such as Equal, Not Equal, Equal to or Less than, etc.
  • Function: Click to insert a predefined function, such as approved, rejected, date, days, isAssignmentValid, and others.
  • Node: Click to select a Workflow Node.

Using the plugin argument editor

Back to top

Every plugin has a variety of parameters and values you can edit using the plugin argument editor. Available parameters and settings are different for each plugin.

Running the Arguments editor:

  1. In the Composer Workflow Canvas, click a plugin node.

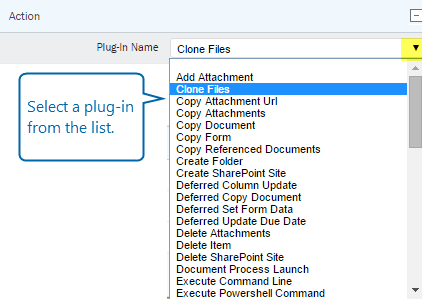

  2. In the PropertiesPane, under Action and next to plugin Name, click the arrow and select a plugin from the list.

  3. In the Properties Pane, under Action and next to plugin Parameters, click to open the plugin Argument Editor.
  4. On the plugin Argument Editor Page:
  • Click Add to more Input or Output Field Value parameters.
  • Click to view more information about the parameter.
  • Click to open the advanced arguments editor (see Working with arguments).
  • Click to delete a parameter.
