Xor/Join node properties

The Xor/Join node is used to evaluate Approval node dispositions and move on to the next step in a workflow based on the property setting of the Approval nodes.

If you have multiple activities you want to run in parallel (such as approvals or tasks), and want to continue the workflow as soon as any one of the activities has completed you would use the XOR Join.

Xor / Join node properties

Property

Description

Assignment Completion Link Text

A hypertext link directing the assignee to their task. This usually does not apply to the Xor/Join node.

Description

A description of the task/assignment.

Item Link Text

A hypertext link directing the assignee to the form or document pertaining to the task. This usually does not apply to the Xor/Join node.

Main Page Link Text

A hypertext link directing the assignee to the Winshuttle Workflow site where the task originated. This usually does not apply to the Xor/Join node.

Name

The name of the task/assignment.

Set Values

Allows you to set a value in a form field or SharePoint list item, after the task has been completed.

Type

Read-only type of the node.

Example

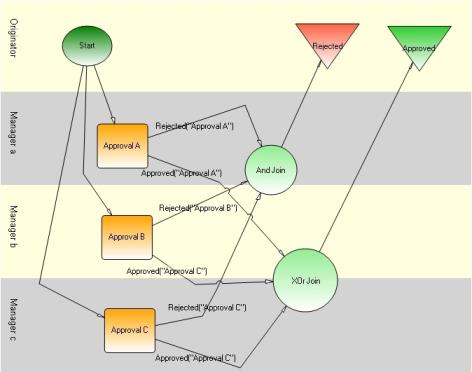

In the following example, the Xor/Join node requires the approval of a single manager before going on to approve and complete the process. (To compare, the And/Join node requires all managers to reject and end the process.)
