Applies to:

  • Winshuttle Foundation


Image properties

With the Image element you can add an image (for example, a company logo) to your form.

See the Form Element General Properties Table for information about the general properties associated with this element.

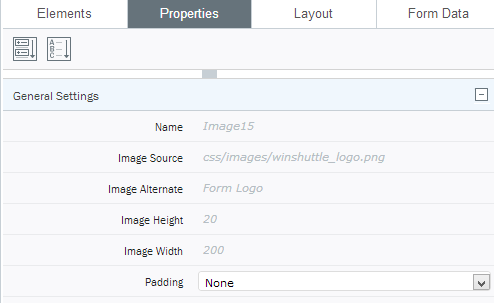

Image element properties:

  • Image Source: The path to the location the image is loaded from.
  • Image Alternate: The Alt-text for the image.
  • Image Height: The height of the image in pixels.
  • Image Width: The width of the image in pixels.

Adding an image to a form

  1. In the canvas, click the group into which you wish to insert the image.
  2. In the Properties Pane, click the Elements tab.
  3. Click Helper Elements, and then click Image.

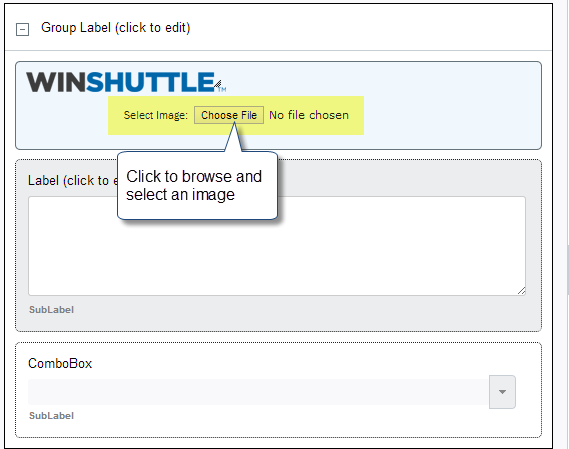

  4. In the canvas, click Choose File to browse to the image you wish to insert, and then click Open.
